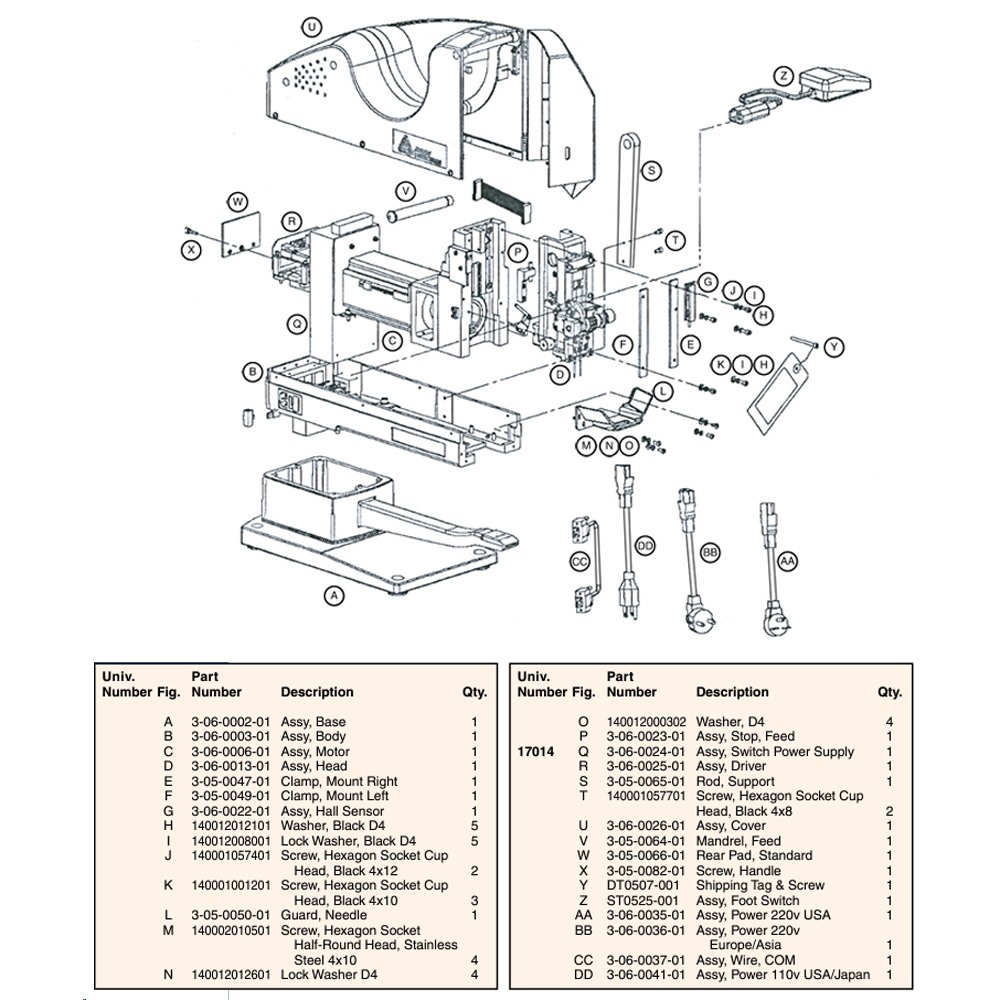

- Whole Machine Parts List
- Base & Body Assembly Parts
- Motor Assembly Parts
- Head & Knife Lever Assembly Parts
- Knife Base Assembly Parts
- Needle Holder Assembly Parts
- Guide Bar, Feed & Feed Lever Assembly Parts
- Hall Sensor, Feed Stop & Other Parts
- Switch, Power Supply & Driver Assembly Parts
- Cover Assembly Parts
- Door Enclosure Assembly Parts

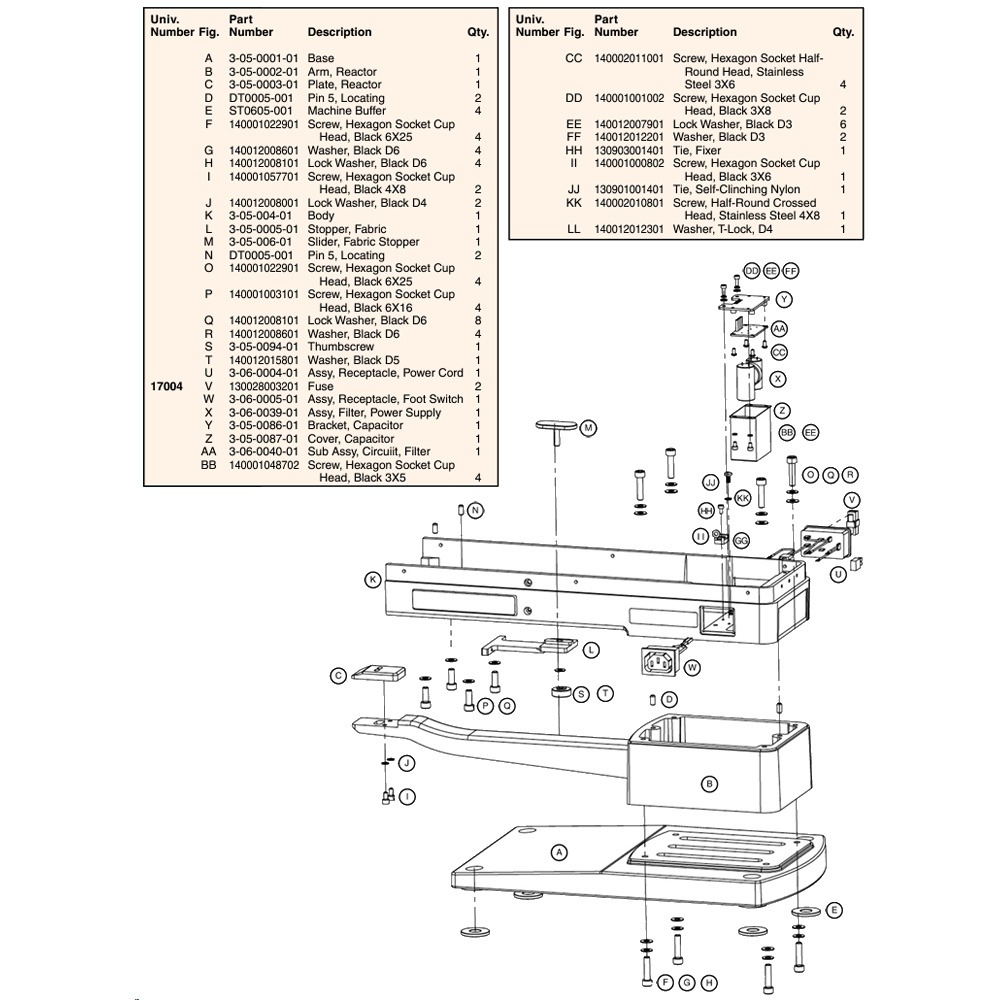

Base and body assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

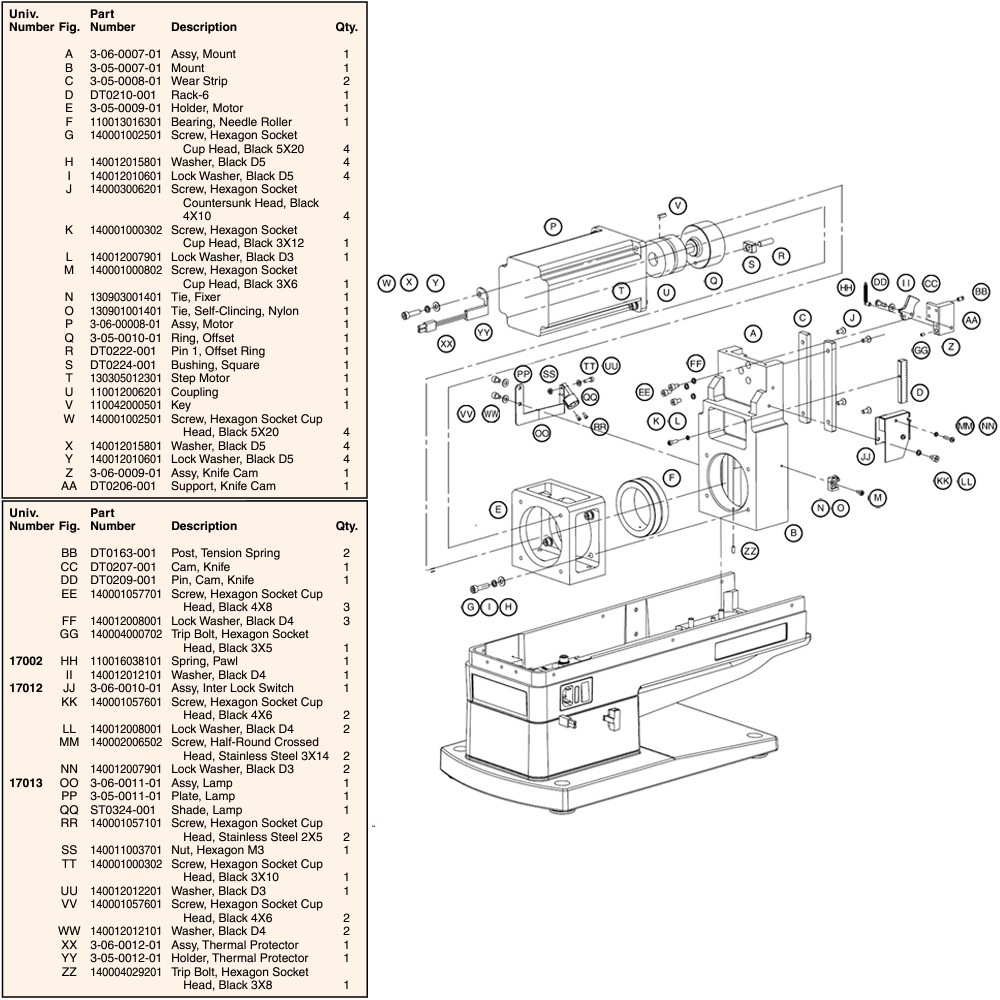

Motor assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

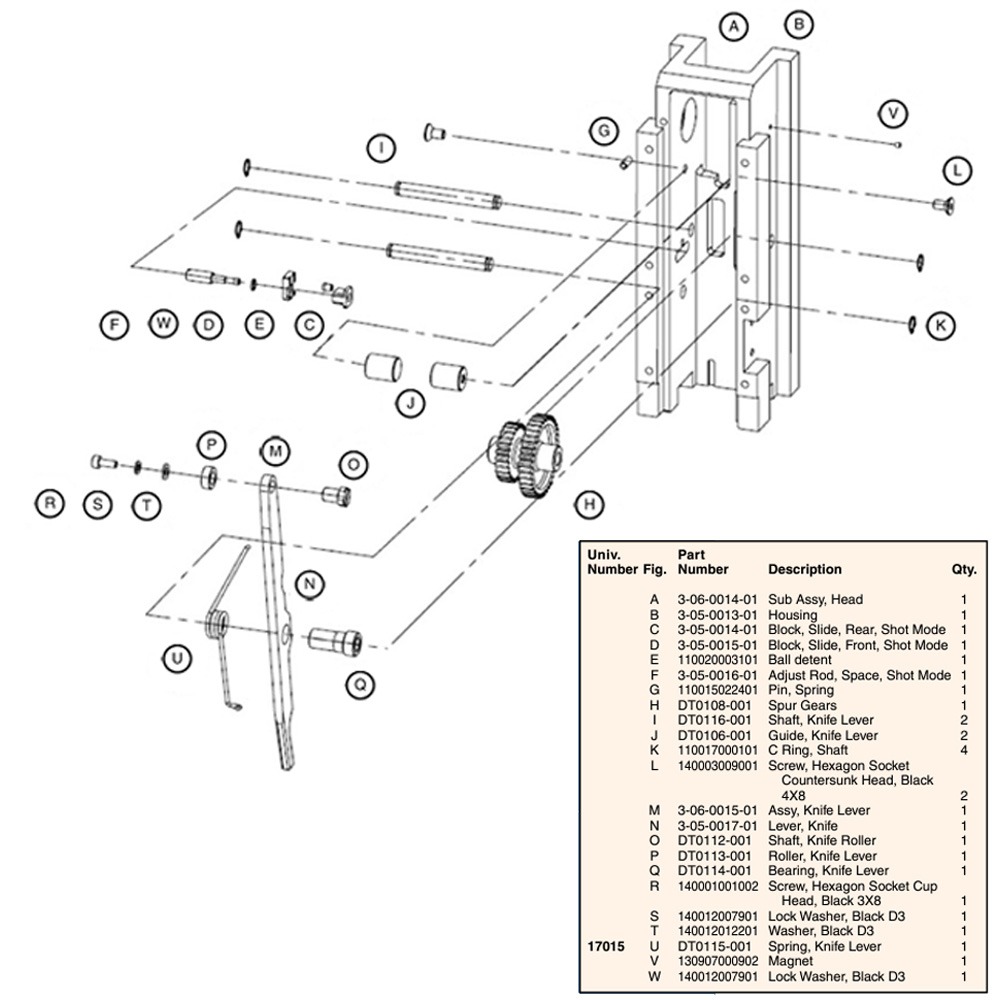

Head subassembly and knife lever assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

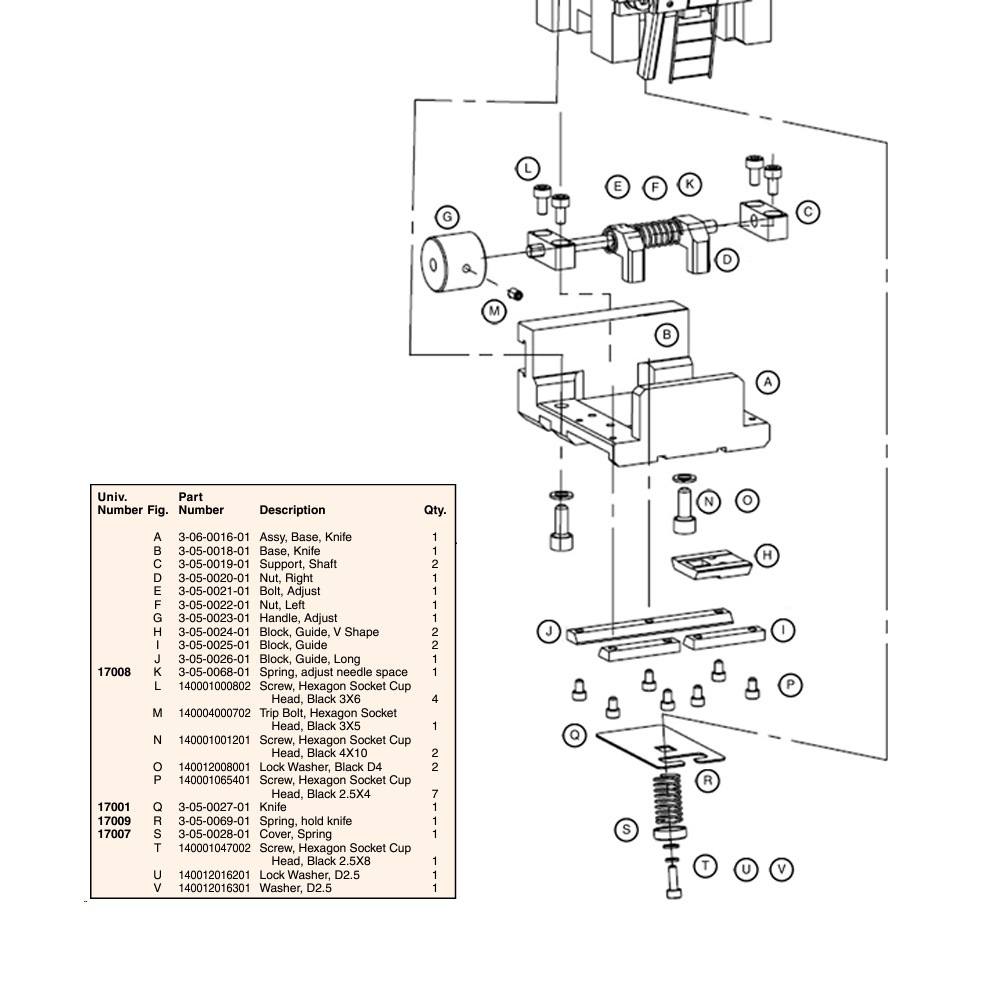

Knife base assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

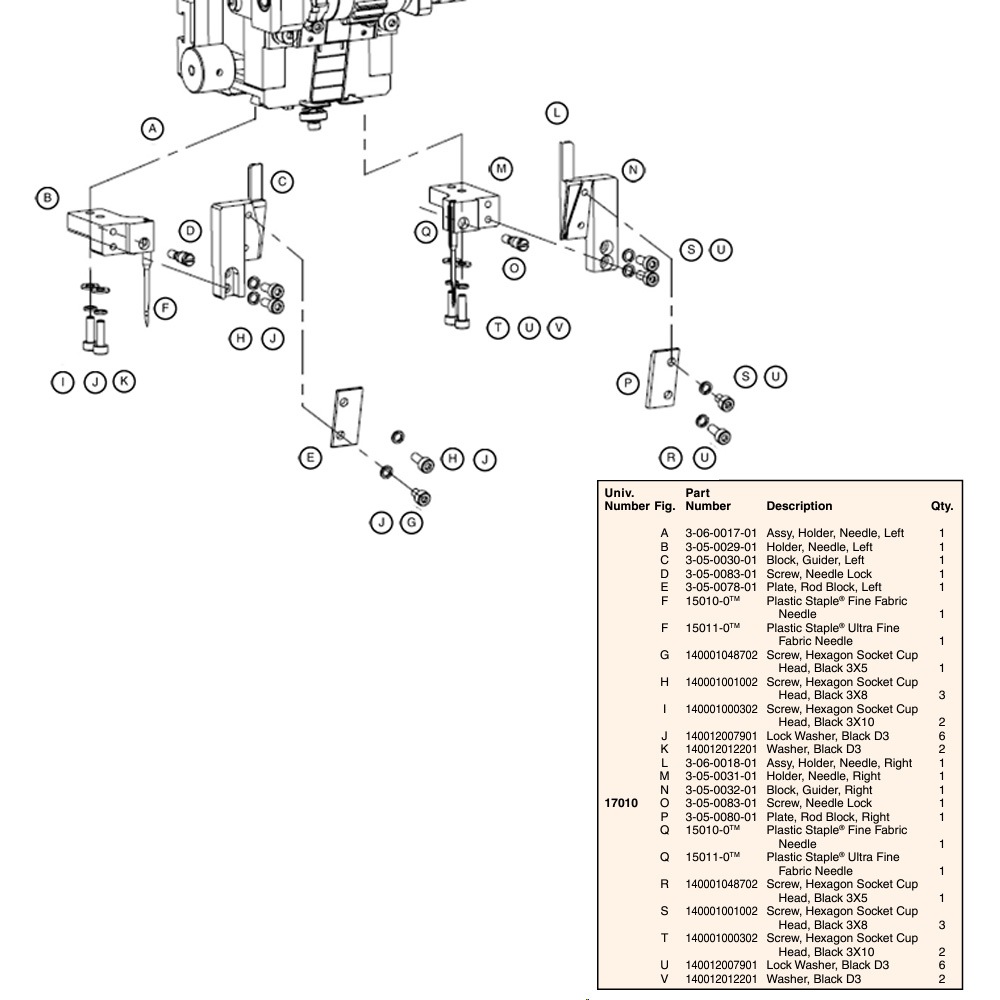

Left and right needle holder assembly base parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.
Guide bar, feed, and feed lever assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.

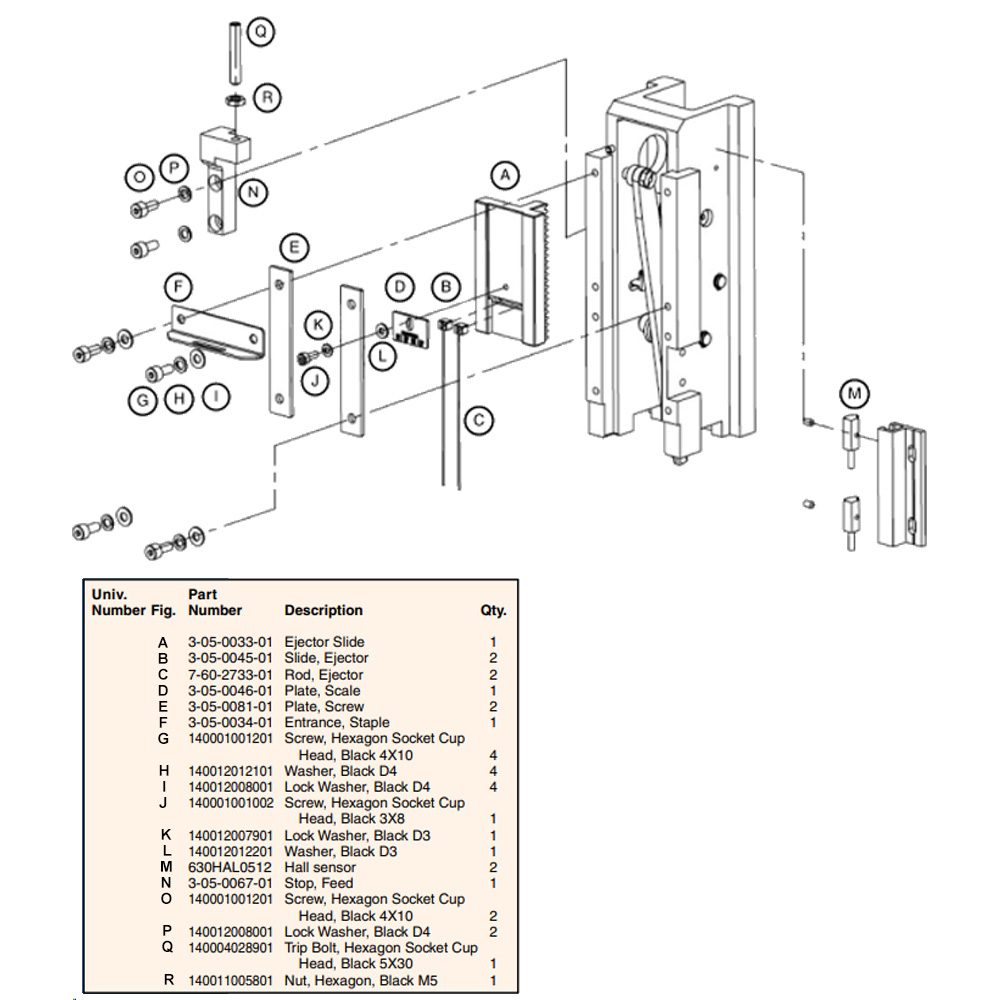

Hall sensor and feed stop assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.
Switch, power supply and driver assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.
Cover assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.
Door enclosure assembly parts for the Avery Dennison ST9500 Plastic Staple Attacher are shown below, along with each part’s corrosponding style number. If we carry the part, you’ll be able to click the style number to open the product detail page in a new browser tab and add the item to your cart or list. If you are unable to find what you are looking for, please contact our sales department.
| Model | Parts Lists |
| ST9500 | Download PDF | Interactive Parts Diagram |

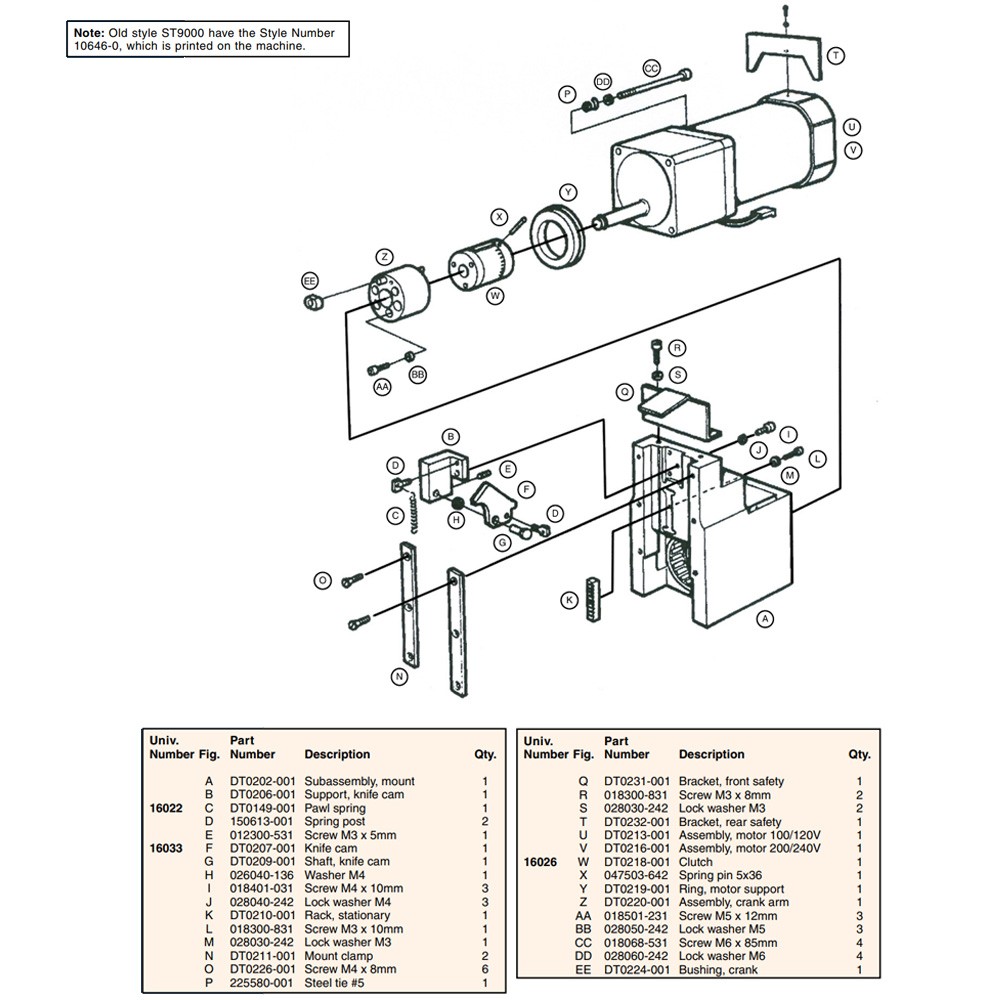

| ST9000, Old Style | Download PDF | Interactive Parts Diagram |

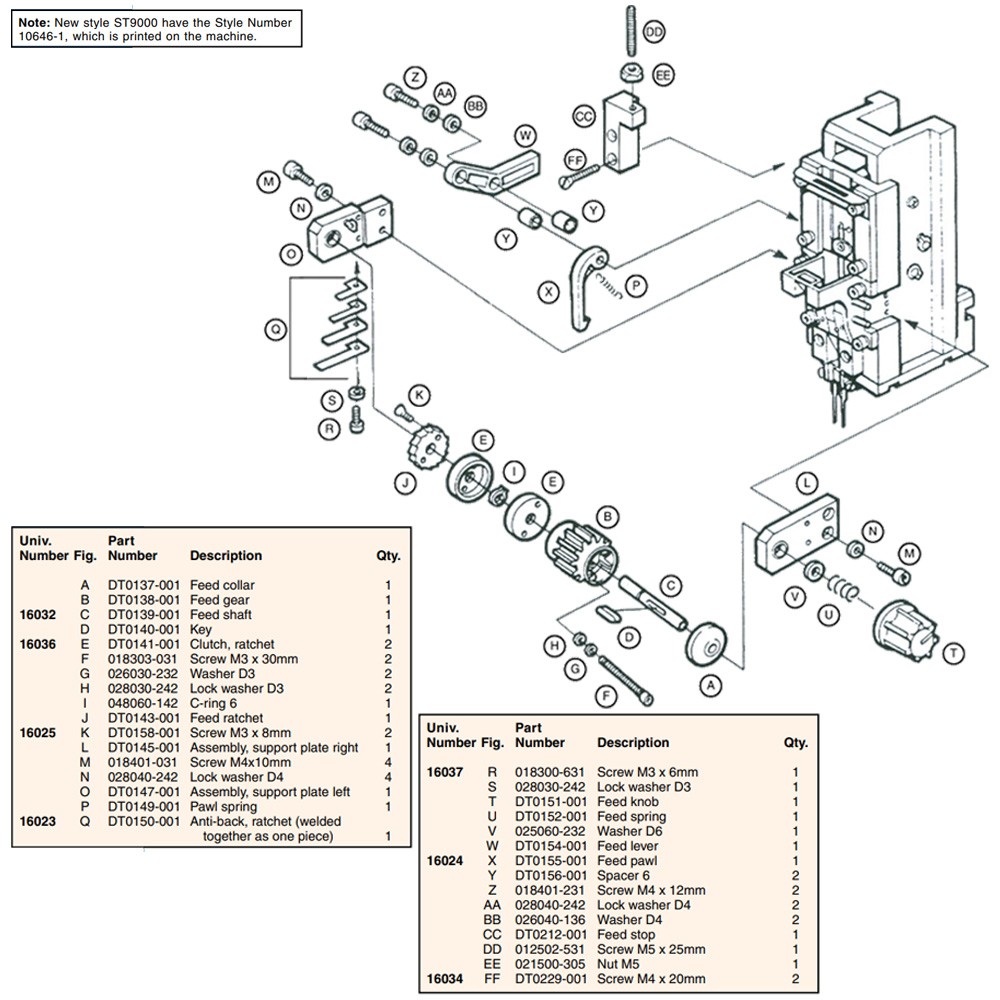

| ST9000, New Style | Download PDF | Interactive Parts Diagram |
